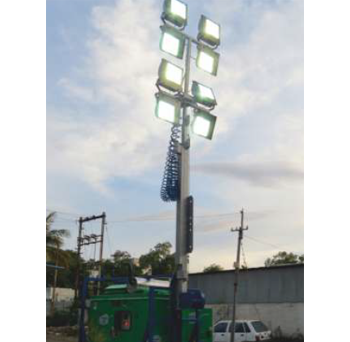

Mobile Tower Light - TW 2000
Automatic
Qty | Description | Specification |
---|---|---|
1 | Diesel Generator | • 5KVA, EA 5 G1, 3Ph. • 3Ph. Cooled Silent DIESEL GENERATOR Set comprising of Kirloskar Green Engine Model EA 5 G1 coupled to Kirloskar Green 5KVA. • Three Phase Alternator mounted on common base frame along with standard accessories. • AVM Pads, Battery. • Insulated Sound proof Canopy and Latch door Control Panel. • Electric Start |
4 | Lighting System | • Make : PHILIPS/BAJAJ/CROMPTON
500 Watts metal halide lamps. • All weather fitting. • Rotation 360 deg |
1 | Generator Mounting Frame | • Heavy duty Frame in C channel
125 x 65 x 6 mm
• Towing hook- spring mounted Foldable • Screw Jack • Leaf Spring and coil type Suspension System. • Heavy duty automobile Common axle. • Tractor trolley heavy duty pull Hook • Tyre type – Radial Make : MRF/CEAT/TVS215/75/R15 |
1 | Light Mounting Frame | • 4 section elevator frame : Sq pipe,
Hot Dip Galvanised
• Handwinch capacity 1500kg -1 nos Lifting • Handwinch capacity 1500kg -1 nos tilting • Wire rope 6 mm - Usha Martin • Frame - Sq pipe - 50x50x5 mm for light mounting |
